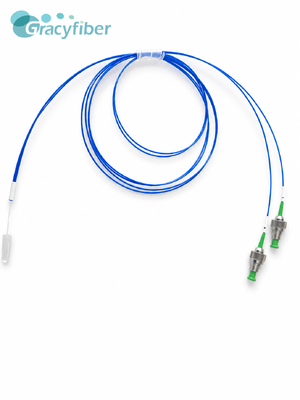

Ultra-Thin 1-Channel Polarization Maintaining FA | PM1550 Fiber, 0 Degree | PM II Alignment, FC-APC | Low IL ≤0.3dB Optical Pigtail

Ultra-Thin 1-Channel Polarization Maintaining FA | PM1550 Fiber, 0 Degree | PM II Alignment, FC-APC | Low IL ≤0.3dB Optical Pigtail

Model Number: 910001701-04
Detail Information
Product Description
Detail Information
Insertion Loss:
≤0.3dB
Extinction Ratio:
≥18dB
Package Dimensions:
8*2.5*0.753mm
Fiber Type:
PM1550
Highlight:

Ultra-Thin PM1550 fiber pigtail

,

1-channel polarization maintaining FA

,

Low IL FC-APC optical pigtail

Product Description
Ultra-Thin 1-Channel Polarization Maintaining FA | PM1550 Fiber, 0 Degree | PM II Alignment, FC-APC | Low IL ≤0.3dB Optical Pigtail
1. Product Overview

Gracyfiber, leveraging its core team's over 25 years of expertise in the optical communications industry, has launched a single-channel polarization-maintaining fiber array (1CH PM FA) specifically designed for precision optical coupling.

2. Core Product Features
Parameters Unit Spec. Value
Channel / 1 OK
Material / Quartz Glass OK
Channel Spacing μm / OK
Polishing Angle Degree / OK
Package(L)X(W)X(H) mm 8*2.5*0.753 OK
Insertion Loss dB ≤0.3
Extinction Ratio dB ≥18 25
FA PM Fiber Alignment / PMII OK
Connctor PM Fiber Alignment / Slow Axis
Alignment Key		 OK
Fiber Type / PM1550 OK
Fiber Tube mm 0.9 OK
Tube Color / Blue OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • Single-channel quartz glass substrate array, 0° (A0°) end face high-precision grinding
  • Utilizes Corning PM1550 polarization-maintaining fiber, protected with 0.9mm blue loose tube tubing
  • Ultra-low insertion loss (≤0.3dB) and excellent extinction ratio (typical 25dB, ≥18dB)
  • FC/APC connector high-precision polarization alignment (strict alignment of the slow axis key)
  • Ultra-thin miniature package design (8*2.5*0.753mm), equipped with dedicated foam shockproof packaging
3. Application Areas
  • High-precision coupling and testing of silicon photonics and photoelectric integrated circuits (PIC)
  • Interconnection of internal components in high-speed coherent optical communication modules (Coherent Optical Modules)
  • Polarization-maintaining waveguide devices and polarization-maintaining splitters (PM PLCs) Splitter single-channel package
  • High-precision fiber optic sensor networks and interferometric fiber optic gyroscopes (FOGs)
  • Advanced polarization-sensitive optical test instruments and core components of LiDAR equipment
Ultra-Thin 1-Channel Polarization Maintaining FA | PM1550 Fiber, 0 Degree | PM II Alignment, FC-APC | Low IL ≤0.3dB Optical Pigtail 0
