| Model Number: | 910001708-47 |

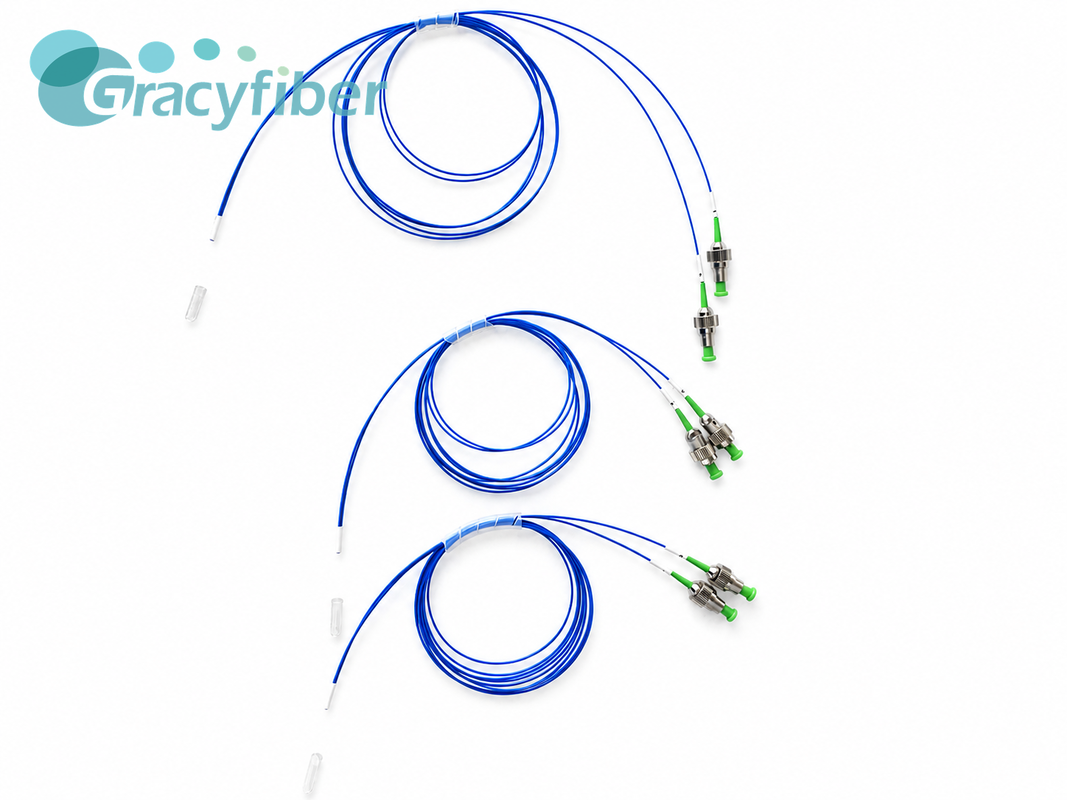

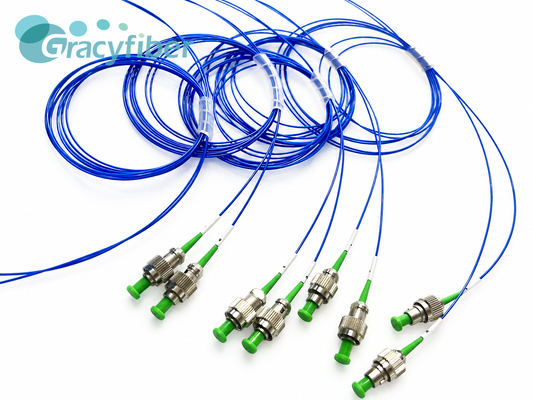

The 8CH PMFA polarization-maintaining fiber array uses Corning PM1550 polarization-maintaining fiber, with a channel pitch of 250μm, 0° end-face polishing, and FC/APC connectors with slow-axis alignment to the key.
| Parameters | Unit | Spec. | Value |
|---|---|---|---|
| Channel | / | 8 | OK |
| Material | / | Quartz Glass | OK |
| Channel Spacing | μm | 250 | OK |
| Polishing Angle | Degree | 0° | OK |
| Package(L)X(W)X(H) | mm | 10*3.5*1.5 | OK |
| Insertion Loss | dB | ≤0.3 | |
| Extinction Ratio | dB | ≥18 | 25 |
| FA PM Fiber Alignment | / | PM II | OK |
| Connctor PM Fiber Alignment | / | Slow Axis Alignment Key |
OK |
| Fiber Type | / | PM15-U25D(Corning) | OK |
| Fiber Tube | mm | 0.9 | OK |
| Tube Color | / | Blue | OK |
| Length | m | 1±0.1 | OK |
| Connector | / | FC/APC | OK |
| Operating Temperature (℃) | 0～65 | OK | |
| Storage Temperature (℃) | -40～85 | OK | |
