Gracyfiber 8CH PM Fiber Array | 127μm Pitch, 8° Angle Quartz Block | Corning PM630-HP, Slow Axis to Key | High ER >18dB, FC/APC

Gracyfiber 8CH PM Fiber Array | 127μm Pitch, 8° Angle Quartz Block | Corning PM630-HP, Slow Axis to Key | High ER >18dB, FC/APC

Detail Information
Product Description
Detail Information
Channel Count:
8
Channel Spacing:
127μm
Polishing Angle:
8°
Extinction Ratio:
≥18dB
Highlight:

8CH PM Fiber Array 127μm Pitch

,

PM Fiber Array 8° Angle Quartz Block

,

Corning PM630-HP FC/APC Fiber Array

Product Description
Gracyfiber 8CH PM Fiber Array | 127μm Pitch, 8° Angle Quartz Block | Corning PM630-HP, Slow Axis to Key | High ER >18dB, FC/APC
Product Overview

This high-precision 8-channel polarization-maintaining fiber array (8CH PMFA) utilizes a high-quality quartz glass substrate and is designed specifically for coherent optical communication and precision optical sensing systems.

Product Features
Parameters Unit Spec. Value
Channel / 8 OK
Material / Quartz Glass OK
Channel Spacing μm 127 OK
Polishing Angle Degree A8° OK
Package(L)X(W)X(H) mm 10*2.5*2.5 OK
Insertion Loss dB ≤0.3 　
　
　
　
　
　
　
　
Extinction Ratio dB ≥18 25
　
　
　
　
　
　
　
FA PM Fiber Alignment / OK
Connctor PM Fiber Alignment / OK
Fiber Tube mm 0.9 OK
Tube Color / White OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • Ultra-low insertion loss (< 0.3 dB)
  • Ultra-high extinction ratio (> 18 dB, typically measured up to 25 dB)
  • Corning PM630-HP polarization-maintaining fiber
  • FC/APC connector (slow-axis keying for precise positioning)
  • High-precision 127μm channel pitch
  • High-precision A8° end face grinding
  • 10×2.5×2.5mm compact quartz package

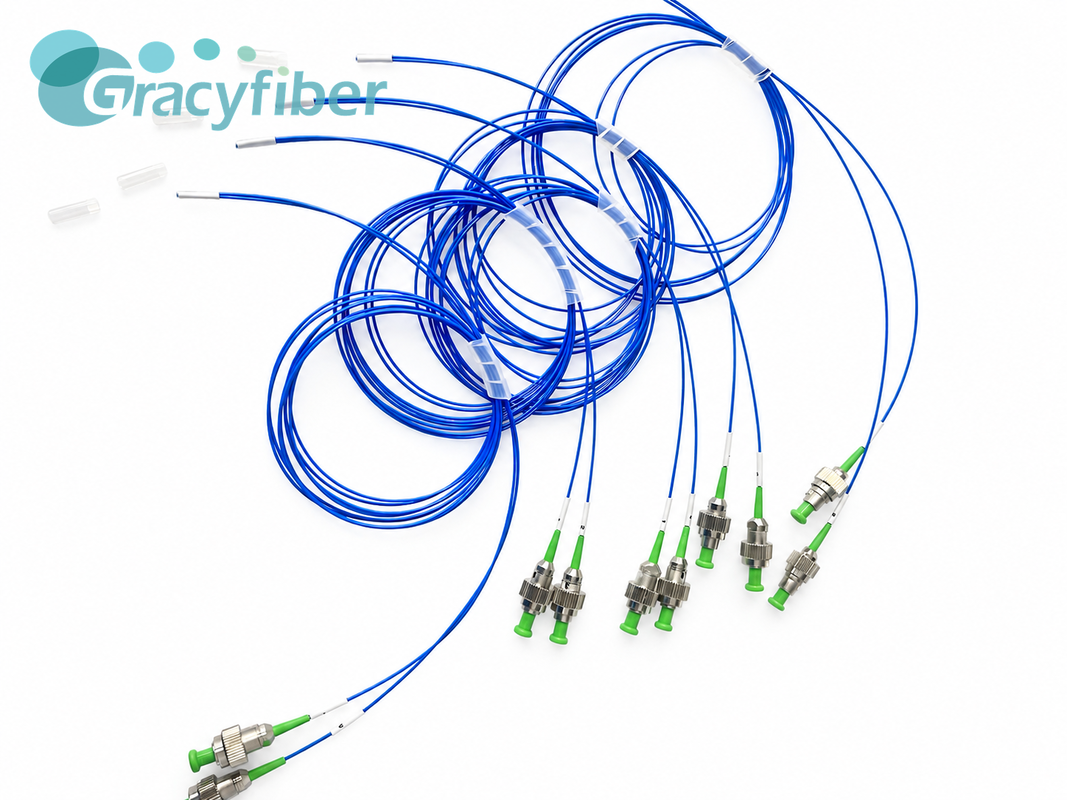

Gracyfiber 8CH PM Fiber Array | 127μm Pitch, 8° Angle Quartz Block | Corning PM630-HP, Slow Axis to Key | High ER >18dB, FC/APC 0

Applications
  • Coherent optical communication system packaging
  • Fiber optic gyroscopes and precision sensing devices
  • Silicon photonic integrated circuit (PIC) coupling and testing
  • Polarization-maintaining planar waveguide (PM PLC) device integration
  • High-speed optical transceiver modules and laser interconnects
