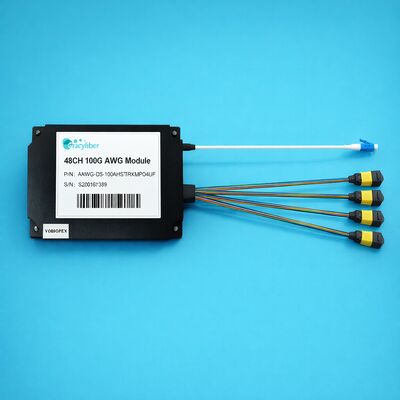

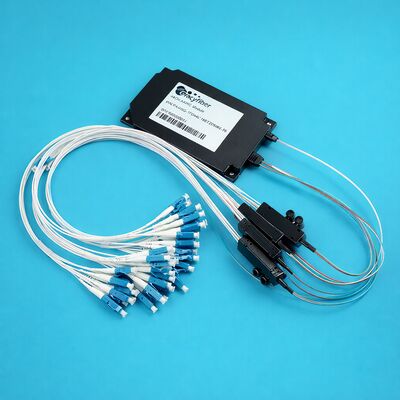

AAWG DWDM Multiplexer (Dense Wavelength Division Multiplexer) — 32CH, 40CH, 44CH, 48CH, 60CH, 80CH, 88CH, 96CH; 50GHz, 100GHz, 150GHz Spacing
This AAWG DWDM Multiplexer is an Arrayed Waveguide Grating (AAWG) based Dense Wavelength Division Multiplexer designed for high-density optical transmission networks.
| Parameter | Unit | Value | |||||
|---|---|---|---|---|---|---|---|
| Operating Wavelength | nm | 1525~1565 | |||||
| Special Port | nm | Monitor,1310 (1260~1360) | |||||
| Center Wavelength | nm | ITU Grid(C13 ~C64) or Customized | |||||
| Channel Port | nm | 32,40 | 32,40,44,48,60 | 80,88,96 | |||
| Channel Spacing | nm | 150GHz (1.2nm) | 100GHz (0.8nm) | 50GHz(0.4nm) | |||
| Channel Passband | Min | nm | ±0.11 | ±0.11 | ±0.05 | ||
| Technology | - | Flat-top | Flat-top | Gaussian | Flat-top | ||
| Pass band @1dB | Min | nm | 0.92 | 0.38 | 0.2 | 0.2 | |
| Pass band @3B | Min | nm | 1.2 | 0.58 | 0.4 | 0.26 | |
| Port Insertion Loss | Max | dB | 5.5 | 5.5 | 3.8 | 6.0 | |
| Isolation | Adjacent | dB | ≥11 | ≥25 | ≥27 | ≥25 | |
| Non-adjacent | dB | ≥23 | ≥29 | ≥30 | ≥29 | ||
| 1310 Port | Max | dB | 1.0 | 1.0 | 1.0 | 1.0 | |
| Uniformity | Max | dB | 1.5 | 1.5 | 1.5 | 1.5 | |
| Ripple | Max | dB | 0.5 | 0.5 | 1.5 | 0.5 | |
| PDL | Max | dB | 0.5 | ||||
| Return Loss | Min | dB | 40 | ||||
| Directivity | Min | dB | 50 | ||||
| Power Handing | Max | mW | 300 | ||||
| Fiber Type | - | G67A1/ A2/ B3 or SMF-28 | |||||
| Fiber Coating | um | 250 µm / 900 µm loose tube | |||||
| Fiber to fan-out Length | mm | 500 | |||||
| Fan-out to Conector Length | mm | 500 | |||||
| Connector | - | LC/UPC or Customized | |||||
| Dimensions (HxWxD) | mm | 120x70x11,482x250x44, 482x230x44 | |||||
| Operating Temperature | °C | -5~65 | |||||
| Storage Temperature | °C | -40~85 | |||||
1. What specifications can be customized?
We can customize the number of channels, center wavelength, channel spacing, Flat-top or Gaussian filter type, package size, fiber type, fiber length, connector type, and port definition according to project requirements. Standard configuration supports G657A1/A2/B3 or SMF-28 fiber, 250μm or 900μm loose tube, and connectors can be LC/UPC or customized according to customer requirements.
2. How do you guarantee the quality and consistency of mass production deliveries?
Gracyfiber is an engineering-driven manufacturer of passive optical components, founded in 2014. The team has over 25 years of industry experience and a manufacturing facility of over 2,000㎡, specializing in WDM, optical filtering, fiber arrays, and precision photonic components. The AAWG DWDM page indicates ISO9001 and RoHS certifications, with an MOQ of 100pcs and a monthly supply capacity of 100,000pcs. Before shipment, testing can be performed on insertion loss, channel isolation, uniformity, ripple, PDL, return loss, directivity, port definition, and appearance. Sample verification and bulk project delivery are supported.
