High Isolation Reflective Wavelength Division Multiplexing WDM Device

Brand Name:	Gracyfiber
MOQ:	100pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE RoSH

Name:

Wavelength Division Multiplexing WDM

Power Handling:

Up To 500 MW

Isolation:

≥ 30 DB

Insertion Loss:

≤ 1.0 DB

Return Loss:

≥ 45 DB

Operating Temperature:

-40°C To +85°C

Channel Spacing:

100 GHz, 50 GHz, Or Custom

Highlight:

High Isolation Wavelength Division Multiplexing WDM

Reflective Wavelength Division Multiplexing WDM

Wavelength Division Multiplexing WDM Device

Product Description

High-Isolation Reflective Wavelength Division Multiplexer (WDM)

1. Product Overview

GRACYFIBER's high-isolation reflective wavelength division multiplexer (WDM) is a miniaturized, high-performance bidirectional filtering component designed for seamless separation of 1310 nm and 1550 nm signals in a single fiber. It is an indispensable core optical engine in GPON/XGS-PON modules, 5G fronthaul, and hybrid access networks. With up to 50 dB transmission isolation and ultra-low insertion loss, this device enables efficient spectral routing without the use of any active components. Its ultra-compact 3.0 x 15 mm package allows for direct and seamless integration into extremely crowded BOSA (Bidirectional Optical Submodule) and transceiver units, providing superior signal integrity for next-generation optical networks requiring stringent channel separation.

2. Product Features

Parameter		Unit	Value
Operating Wavelength		nm	1260~1620
Pass Band Wavelength		nm	1310 (1260~1337)	1550 (1503~1577)
Reflect Band Wavelength		nm	1550 (1503~1577)	1310 (1260~1337)
Insertion Loss	Max.Pass	dB	1.1	1.1
Insertion Loss	Max.Reflect	dB	0.7	0.7
Isolation	Transmission	dB	≥50	≥50
Isolation	Reflection	dB	≥15	≥15
Ripple	Max	dB	0.5	0.5
PDL	Max	dB	0.10
Return Loss	Min	dB	40
Directivity	Min	dB	50
Power Handing	Max	mW	300
Fiber Type		-	G67A1/ A2/ B3 or SMF-28
Fiber Coating		um	250 µm / 600 µm loose tube
Fiber Length		mm	100
Connector		-	LC/UPC(Receptacle & Ferrule)
Package Dimension (ΦxL)		mm	Φ3.0xL15
Operating Temperature		°C	-20~70
Storage Temperature		°C	-40~85

(Designed specifically to address space constraints and crosstalk in single-fiber bidirectional transmission within optical modules)

Features: Extreme miniaturization design ($Phi 3.0 × L15 mm$)

Pain points/value addressed: The overall steel tube dimensions are strictly controlled to a diameter of only 3.0 mm and a length of only 15 mm. This extreme miniaturization directly alleviates the cabling crisis faced by optical module (such as SFP+, QSFP28) hardware engineers within a confined enclosure, enabling easy integration into the BOSA assembly of ONU/OLT devices without the need to redesign expensive module molds.

Features: Ultra-high channel isolation ($≥ 50 dB) addresses key

pain points and provides value: The transmission end offers up to 50 dB of isolation when separating the 1310 nm and 1550 nm bands. This forms an absolute optical barrier, completely blocking crosstalk from high-power emitted light to the extremely sensitive receiver (Rx), ensuring zero bit error rate even over extremely long distances in a single-fiber bidirectional (BiDi) link.

Features: Ultra-low insertion loss and extremely low PDL

Pain points addressed/value: Despite its tiny size, its maximum insertion loss at the transmission end is only 1.1 dB, and at the reflection end it's as low as 0.7 dB. Combined with a maximum polarization dependent loss (PDL) of only 0.10 dB, it can salvage valuable optical power budget for your power-sensitive PON links, significantly increasing the network's coverage radius.

Features: Receptacle & Ferrule (socket and ferrule) direct connection interface design

Pain points addressed/value: The port innovatively adopts an LC/UPC connection form with adapter sockets and ferrules. This "plug-and-play" device-level interface greatly simplifies the coupling and assembly process on optical module production lines, significantly improving yield and assembly efficiency in large-scale manufacturing.

Features: Highly reliable industrial-grade temperature stability

addresses key pain points and provides value: Supports stable operation in harsh environments ranging from -20°C to 70°C, with a storage temperature range of -40°C to 85°C. Unaffected by drastic temperature fluctuations in outdoor optical node chassis, ensuring a long service life for FTTH networks.

3. Application Scenarios

Our Reflective WDM devices are the core link connecting optical chips to external physical fiber optic networks:

GPON/XG-PON/XGS-PON Optical Transceiver Modules: Separate downlink high-speed video/data signals from uplink user data.
BiDi (Single-Fiber Bidirectional) Optical Modules: Provide underlying frequency division support for single-fiber interconnects between data centers and 5G fronthaul.
BOSA (Bidirectional Optical Submodule) Integration: Essential core filtering devices for OEMs to package optoelectronic components.
OLT (Optical Line Terminal) and ONU (Optical Network Unit): Physical layer signal distribution hubs for central office and user-end equipment.
Optical Sensing and Network Monitoring: Non-destructively injecting or extracting specific probe wavelengths in sensing links.

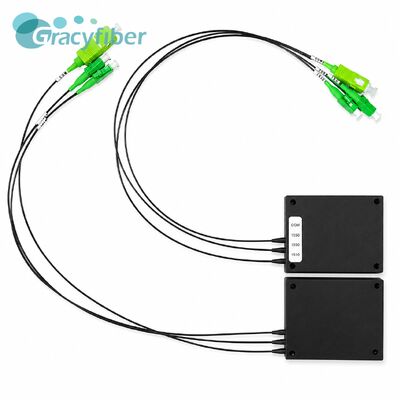

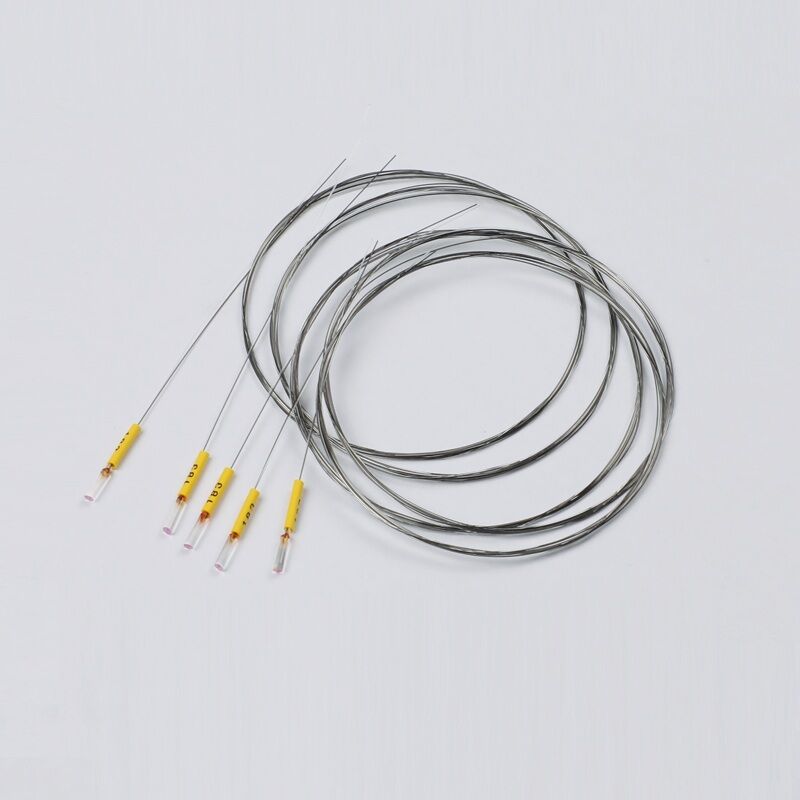

High Isolation Reflective Wavelength Division Multiplexing WDM Device 0

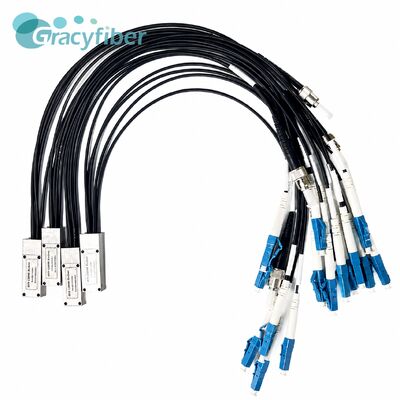

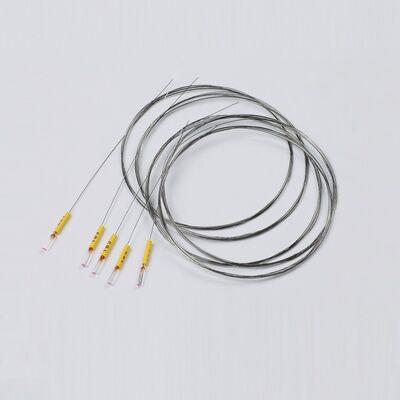

High Isolation Reflective Wavelength Division Multiplexing WDM Device 1

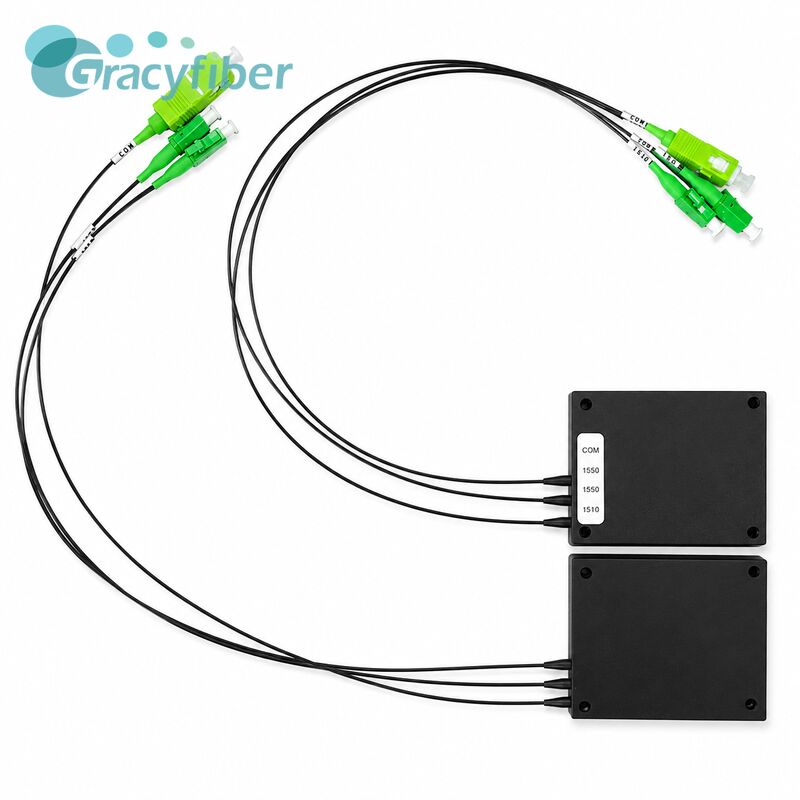

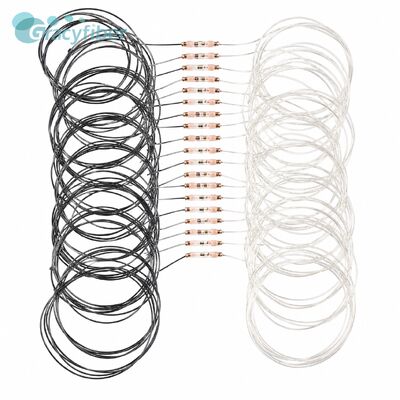

High Isolation Reflective Wavelength Division Multiplexing WDM Device 2
