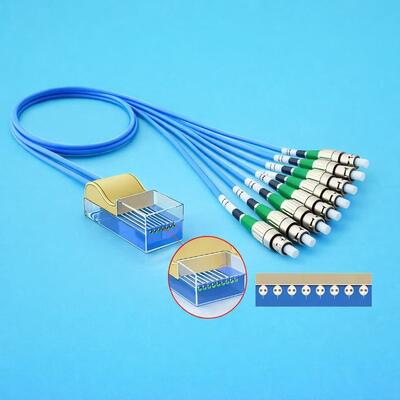

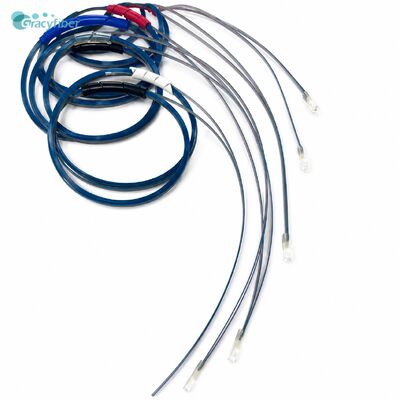

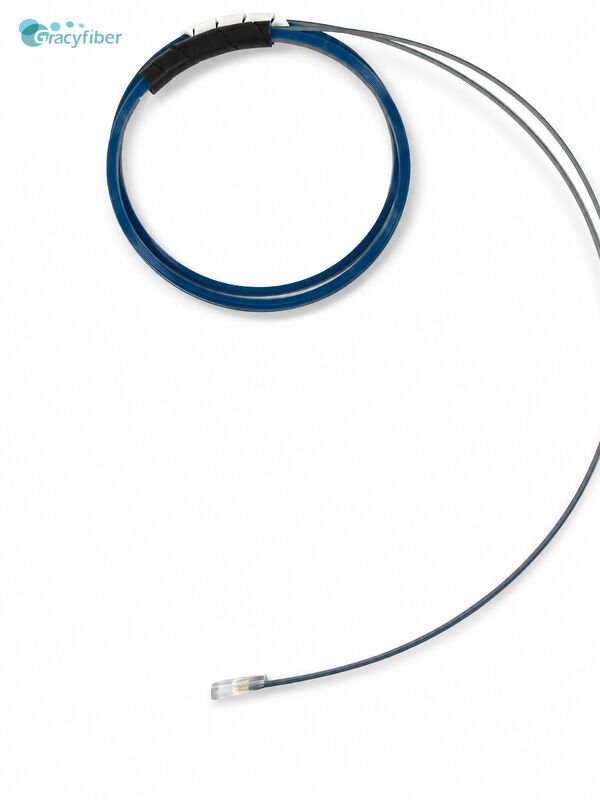

PM SM Hybrid Fiber Array Polarization Maintaining Single Mode V Groove Fiber Array For Coherent Optical Transceiver Module
High-quality PM+SM hybrid fiber arrays integrate polarization-maintaining fiber (PM) and single-mode fiber (SM) into a single array to meet specific customer application requirements.
Key Features:
Arbitrary Combinations: Supports arbitrary arrangements of PM (polarization-maintaining), SM (single-mode), and even MM (multimode) fibers.
High Precision: Pitch tolerance controlled within < 0.5μm.
High Extinction Ratio: Guaranteed high extinction ratio performance of polarization-maintaining fiber.
Diverse Specifications:
Number of Channels: 2, 4, 8, 16, 32, or more channels available.
Fiber Spacing: 127μm, 250μm, or customer-specified spacing.
High Reliability and Low Cost: Offers competitive pricing while ensuring performance.
Customization Services: Fully customized to meet specific customer optical path designs.
|
Material |
Quartz& Silicon |
|||||||
|
V-groove core pitch |
μm |
127/250/500(±0.5)or customer specified |
||||||
|
wavelength |
|
460 780 980 1060 1310 |
||||||
|
Polishing angle |
degree |
90°(±0.3°) |
||||||
|
Number of channels |
1 |
2 |
4 |
8 |
16 |
32 |
64 |
|
|
Channel spacing |
μm |
|
250 |
127 |
127 |
127 |
127 |
127 |
|
Package |
mm |
6x2.5x2.5 |
10x2.5x2.5 |
10x2.5x2.5 |
10x2.5x2.5 |
12x3.5x2.5 |
12x5.7x2.5 |
12X9.7X2.5 |
|
Extinction ratio |
dB |
≥25 |
≥25 |
≥23 |
≥21 |
≥20 |
≥16 |
≥15 |
|
PM Fiber Alignment |
PM orientation Ⅱ |
|||||||
|
Fiber Type |
Corning PM15-U25D |
|||||||
|
Fiber Length |
1+/-0.1m |
|||||||
|
Connector |
FC/APC(Slow Axis Alignment Key) |
|||||||
|
Operating Temperature (℃) |
-5～65 |
|||||||
|
Storage Temperature (℃) |
-40～85 |
|||||||
This hybrid fiber optic array is primarily used in complex integrated optical systems, especially in scenarios requiring the simultaneous processing of different types of optical signals:
Optical Devices/Modules: Used for packaging multifunctional integrated optical modules.
Coherent Optical Transceivers: This is the most typical application scenario. Coherent communication typically requires both the local oscillator light (polarization maintained by PM fiber) and the signal light (transmission by SM fiber) to be coupled into the chip simultaneously.
