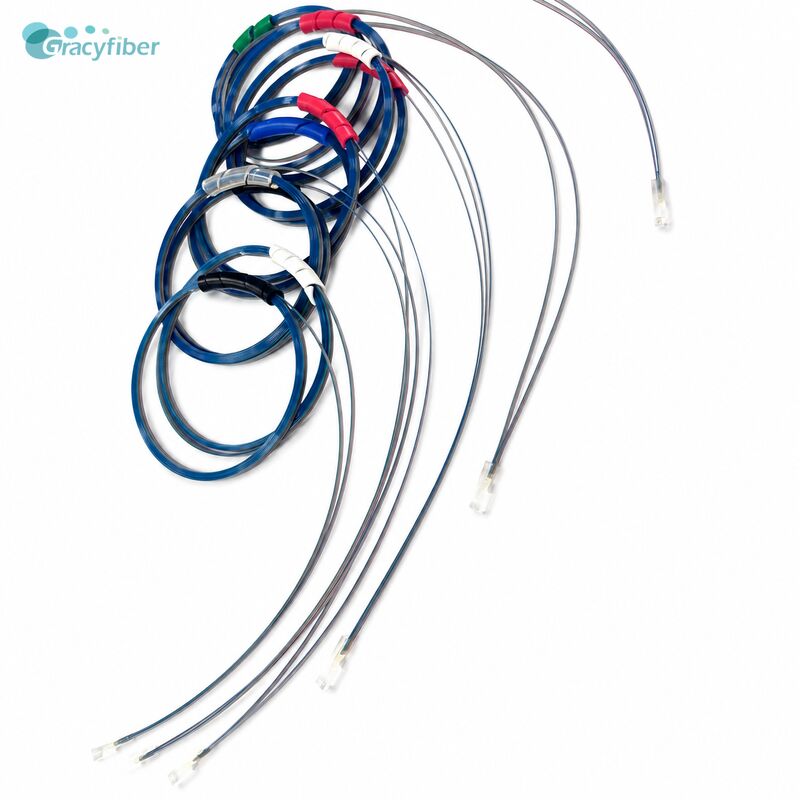

Ultra-Compact Lidless PM Fiber Array Quartz V-Groove 1-64CH 127um Pitch High ER Polarization Maintaining Array For Silicon Photonics Coherent Modules OEM

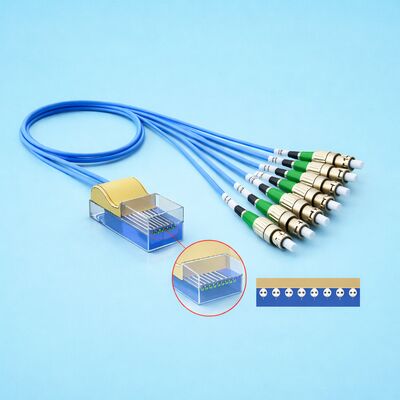

High-quality polarization-maintaining lidless fiber arrays. These products are typically made of quartz and feature an extremely compact design (no top cover), making them particularly suitable for integrated optics applications with thickness or space constraints.
Key Features:
Ultra-thin/Lidless Design
High Pitch Accuracy
Polarization Maintaining Performance
|
Material |
Quartz& Silicon |
|||||||
|
V-groove core pitch |
μm |
127/250/500(±0.5)or customer specified |
||||||
|
wavelength |
|
460 780 980 1060 1310 |
||||||
|
Polishing angle |
degree |
90°(±0.3°) |
||||||
|
Number of channels |
1 |
2 |
4 |
8 |
16 |
32 |
64 |
|
|
Channel spacing |
μm |
|
250 |
127 |
127 |
127 |
127 |
127 |
|
Package |
mm |
6x2.5x2.5 |
10x2.5x2.5 |
10x2.5x2.5 |
10x2.5x2.5 |
12x3.5x2.5 |
12x5.7x2.5 |
12X9.7X2.5 |
|
Extinction ratio |
dB |
≥25 |
≥25 |
≥23 |
≥21 |
≥20 |
≥16 |
≥15 |
|
PM Fiber Alignment |
PM orientation Ⅱ |
|||||||
|
Fiber Type |
Corning PM15-U25D |
|||||||
|
Fiber Length |
1+/-0.1m |
|||||||
|
Connector |
FC/APC(Slow Axis Alignment Key) |
|||||||
|
Operating Temperature (℃) |
-5～65 |
|||||||
|
Storage Temperature (℃) |
-40～85 |
|||||||
Array Waveguide Gratings (AWG)
Planar Splitters / PLC Splitters
Integrated Fiber Optic Components
Especially suitable for edge or surface coupling of silicon photonic chips.
For coherent communication modules requiring extremely low profile packaging.
