| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |

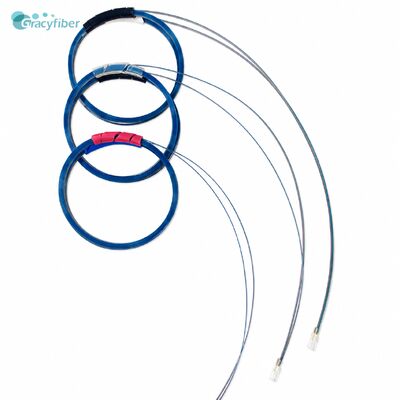

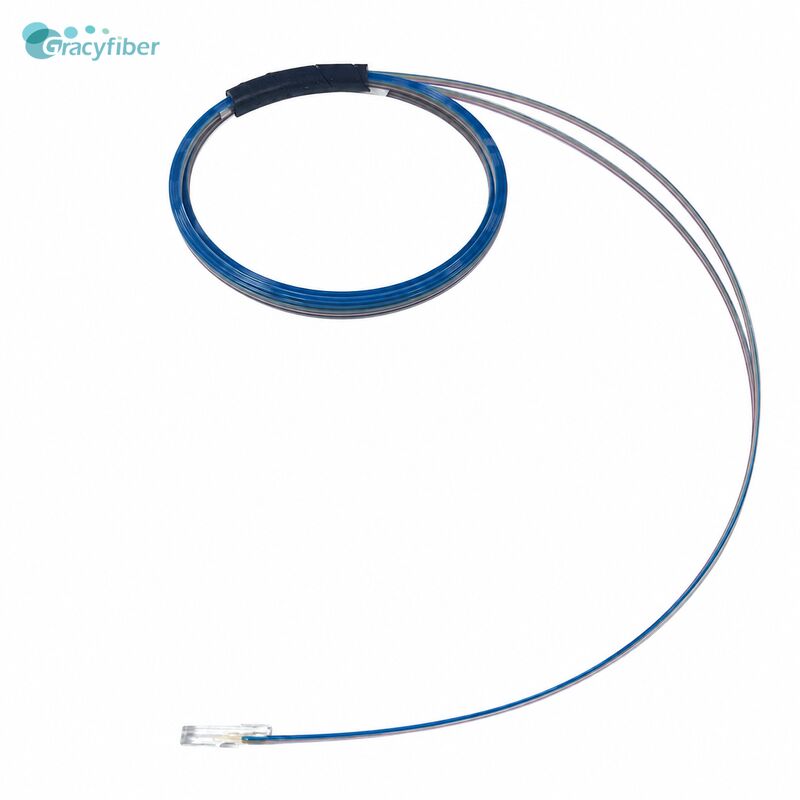

Polarization Maintaining Fiber Array PM V Groove Fiber Array High Precision Quartz Pyrex Silicon 1 To 64 Channel For Coherent Communication PM Waveguide And Sensing
High-quality polarization-maintaining fiber arrays consist of multiple polarization-maintaining fibers with their polarization axes aligned and arranged in the same plane. Made of Quartz, Pyrex glass, or Silicon, these arrays offer high precision, high reliability, and low cost.
|
Material |
Quartz& Silicon |
|||||||
|
V-groove core pitch |
μm |
127/250/500(±0.5)or customer specified |
||||||
|
wavelength |
|
460 780 980 1060 1310 |
||||||
|
Polishing angle |
degree |
90°(±0.3°) |
||||||
|
Number of channels |
1 |
2 |
4 |
8 |
16 |
32 |
64 |
|
|
Channel spacing |
μm |
|
250 |
127 |
127 |
127 |
127 |
127 |
|
Package |
mm |
6x2.5x2.5 |
10x2.5x2.5 |
10x2.5x2.5 |
10x2.5x2.5 |
12x3.5x2.5 |
12x5.7x2.5 |
12X9.7X2.5 |
|
Extinction ratio |
dB |
≥25 |
≥25 |
≥23 |
≥21 |
≥20 |
≥16 |
≥15 |
|
PM Fiber Alignment |
PM orientation Ⅱ |
|||||||
|
Fiber Type |
Corning PM15-U25D |
|||||||
|
Fiber Length |
1+/-0.1m |
|||||||
|
Connector |
FC/APC(Slow Axis Alignment Key) |
|||||||
|
Operating Temperature (℃) |
-5～65 |
|||||||
|
Storage Temperature (℃) |
-40～85 |
|||||||
Polarization-maintaining fiber arrays are primarily used in polarization-sensitive optical systems:
