| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |
8CH 200G O-Band PM DWDM Module (8-Channel 200G O-Band Polarization-Maintaining Dense Wavelength Division Multiplexing Module) — For PON, CATV, And Optical Transmission Systems
This 8-channel, 200 GHz O-Band PM DWDM Module is a polarization-maintaining (PM) Dense Wavelength Division Multiplexing/Demultiplexing module operating within the O-band. It is specifically designed for high-speed, multi-service transmission within the 1.3μm low-dispersion window. Featuring a 200 GHz channel spacing, the product supports two distinct 8-channel wavelength schemes, allowing for flexible selection based on specific project requirements. The module utilizes PM 13-U25D polarization-maintaining fiber, with a standard pigtail length of 1.0±0.1m. It is configured with a 0.9mm blue Hytrel jacket and comes with FC/APC connectors as the default option. The standard package dimensions are 100*80*10mm, facilitating easy integration into 1U/2U chassis or various photonic sub-modules.
| Parameters | 8CH Mux | |
|---|---|---|
| Operating Wavelength (nm) | 1260~1380 | |
| Channel spacing | 200G(Oband) | |
| 953115409产品波长 | 1295.56/1297.8/1300.05/1302.31/1304.58/1306.85/1309.14/1311.43 | |
| 953115410产品波长 | 1296.68/1298.93/1301.18/1303.45/1305.72/1308.00/1310.28/1312.58 | |
| Pass band (nm) | λC±0.2 | |
| Ripple (dB) | ＜0.5 | |
| Insertion Loss (dB) | < 2.5 | |
| Extinction Ratio (dB) | > 18 | |
| Isolation (dB) | Adjacent | > 28 |
| Non-adjacent | > 40 | |
| RL (dB) | >45 | |
| Directivity (dB) | >50 | |
| Power (mw) | <300 | |
| Fiber Type | PM 13-U25D Fiber | |
| Fiber Length(m) | 1.0+/-0.1(0.9mm Hytyrel Blue Tube) | |
| Connector | FC/APC | |
| Operating Temperature (℃) | -5~+65 | |
| Storage Temperature (℃) | -40~+85 | |

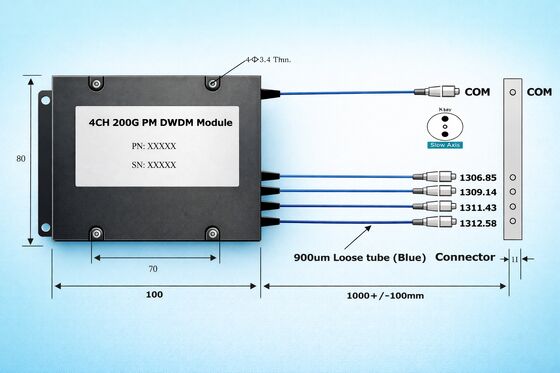

| Housing(mm) | 100*80*10 | |
