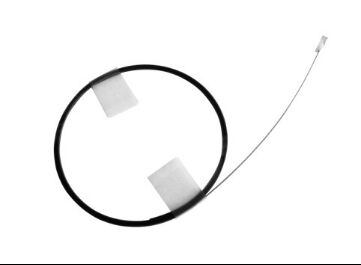

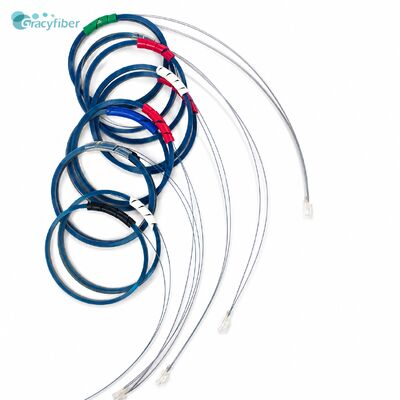

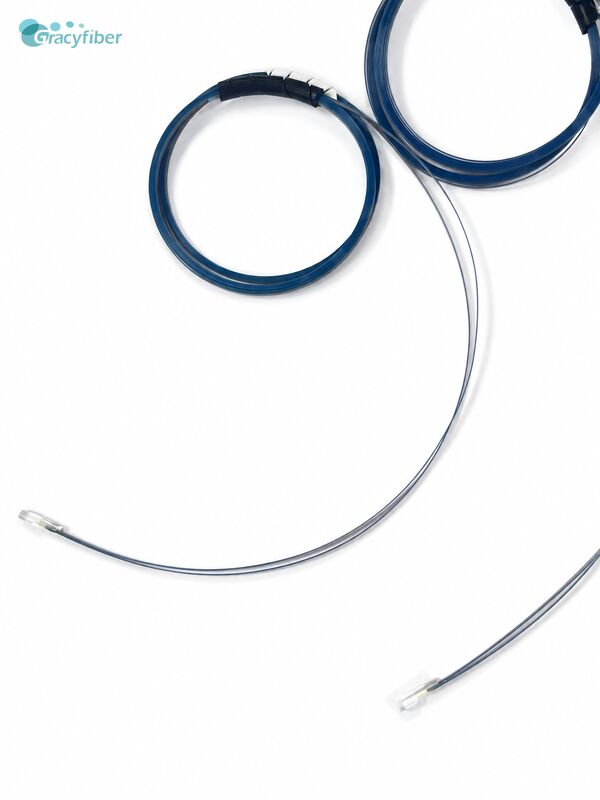

PM Fiber Array Polarization Maintaining V Groove Fiber Array 8 Degree Quartz Silicon 1 To 64 Channel For PM Collimator Photonic Waveguide And Laser

PM Fiber Array

A Polarization Maintaining Fiber Array (PM-FA) is a multi-channel optical component that precisely positions an array of Polarization Maintaining (PM) fibers. Its primary function is twofold:

1. Applications

PM photonic waveguide devices
PM-collimator arrays [PM combiner]
Multi-PM fiber collimators
Different laser sources

2. PM Fiber Alignment

PM Fiber Array
Material		Quartz& Silicon
V-groove core pitch	μm	127/250/500(±0.5)or customer specified
Polishing angle	degree	8°(±0.3°)
Fiber type		250um Panda PM fiber
Number of channels		1	2	4	8	16	32	64
Channel spacing	μm		250	250	250	127	127	127
Package (L)X(W)X(H)	mm	6x2.5x2.5	10x2.5x2.5	10x2.5x2.5	10x2.5x2.5/ 10x3.5x2.5	12x3.5x2.5	12x5.7x2.5	12X9.7X2.5
Extinction ratio	dB	≥25	≥25	≥23	≥21	≥18	≥16	≥15
Connector		FC/SC/LC or Customized
Operating Temperature (℃)		-5～65
Storage Temperature (℃)		-40～85

Notes:

Channels number / Operating Wavelength and Device Dimension can be customer specified.

4. Ordering information

PM Single-Channel Fiber Array

PMSFA-	XX-	X-	XX-	X-	X-	X
PM=Polarization Maintaining	Channel Count	Materials	Fiber Length	Fiber Type	Fiber Color	Polishing Angle
S=Single	01=D type capillary	Q=Quartz	12=1.2m	B=250μm Bare Fiber	C=Clear	A= +8°
F=Fiber	02=Quadrate capillary	S= Silicon	15=1.5m	L=900μm Loose Tube	W=White	V= -8°
A=Array	03=V groove		X=Customized	T=900μm Tight Buffer	B=Blue	N=0°
					X=Customized	X=Customized

PM Multi-Channel Fiber Array

PMGFA-	XX-	X-	XX-	XX-	X-	X
PM=Polarization Maintaining	Channel Count	Materials	Core Pitch	Ribbon Fiber Length	Ribbon Fiber Color	Polishing Angle
G=Gracyfiber	02=2 channels	Q= Quartz	25= 250μm	12=minimum 1.2m	S=Gigalight Standard	A= +8°
F=Fiber	04=4 channels	S= Silicon	12= 127μm	15=minimum 1.5m	X=Customized	V= -8°
A=Array	08=8 channels			..........		N=0°
	..........					X= Customized
	64=64 channels
