460nm-1650nm PM Fiber Array Precise Polarization Alignment For Optical Communication

  PM (Polarization Maintaining) Fiber Array is a precision optical device designed to maintain the polarization state of the input optical signal. It splits the input polarized light signal into multiple output channels while keeping the polarization properties consistent.

• Optical Fiber Communication Systems: Ideal for applications requiring high polarization stability and efficiency.

• Fiber Optic Sensor Systems: Used in systems such as fiber grating sensors and gyroscopes for accurate signal processing.

• Optical Measurement and Interference Systems: Suitable for interferometers, optical coherence   tomography, and related applications.

• Research and Development: Commonly used in optical laboratories for testing and system development.

• Polarization Maintenance: Ensures consistent polarization state across all channels.

• High Precision: Manufactured with strict tolerances to ensure reliable and accurate performance.

• Low Insertion Loss: Guarantees efficient signal transmission.

• High Reliability: Stable performance over extended operational periods.

• Customizable Configurations: Adaptable to specific wavelength ranges, fiber types, and packaging requirements.

• Telecommunications: Polarization management in high-speed optical networks.

• Instrumentation: For precision optical signal processing and measurement.

• Sensing Technologies: Essential in systems like distributed fiber optic sensing.

• Compliance with Standards: Meets Telcordia GR-1209-CORE-2001 for reliability.

• High Polarization Extinction Ratio: Ensures superior signal integrity.

• Wide Wavelength Range: Compatible with various applications in the O, C, and L bands.

• Durable and Stable: Designed for rigorous environments and extended use.

FAQ

1. What are the operating temperature range and power consumption of this PM FA? Can it operate in harsh optoelectronic integration environments?

As a high-precision passive optical component, this product has a power consumption of 0W.

2. Do you support customization (OEM/ODM) of the number of channels, chip pitch, and end-face angle for specific chip couplings?

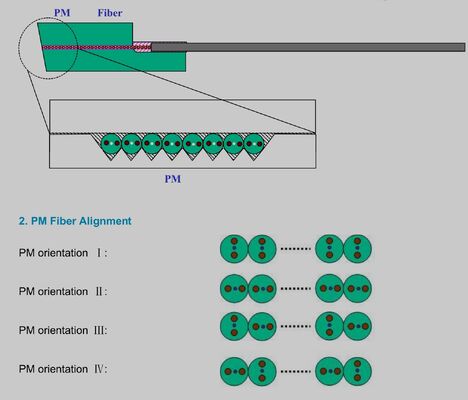

Fully supported. With strong original R&D capabilities, we provide the deepest non-standard customization. You can customize multi-channel expansion from 2CH to 64CH; precisely specify channel pitch (e.g., 127μm, 250μm, etc.) and tolerance requirements; specify polarization axis alignment (slow axis or fast axis); and customize end face grinding at 0°, 8° or other special angles according to your chip waveguide requirements to perfectly match your system drawings.
