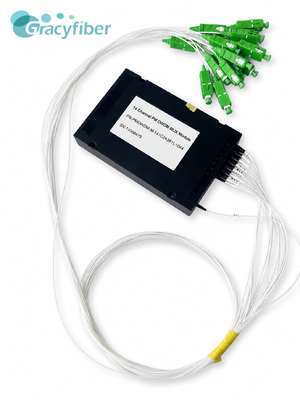

8CH DWDM Mux Demux Module | 1310nm Express & Monitor Port | 100GHz C-Band ITU Grid | Low IL 2.8dB | High Isolation DWDM

Detail Information

Product Description

Detail Information

Operating Wavelength:

1525~1565 Nm

Channel Spacing:

100GHz (0.8nm), 200GHz (0.8nm)

Insertion Loss:

≤ 2.8 DB

Power Handling:

300 MW

Highlight:

8CH DWDM Mux Demux Module 1310nm

DWDM Mux Demux 100GHz C-Band ITU

Low IL 2.8dB High Isolation DWDM

Product Description

8CH DWDM Mux Demux Module | 1310nm Express & Monitor Port | 100GHz C-Band ITU Grid | Low IL 2.8dB | High Isolation DWDM

1. Product Overview

Gracyfiber's 8-channel dense wavelength division multiplexing (8CH DWDM) module is designed for high-capacity optical network expansion, operating at wavelengths from 1525-1565nm and integrating a 1310nm specific expansion and monitoring port.

2. Product Features

Parameter		Unit	Value
Operating Wavelength		nm	1525~1565
Special Port		nm	Monitor,1310 (1260~1360)
Center Wavelength		nm	ITU Grid(C11 ~C64) or Customized
Channel Spacing		nm	100GHz (0.8nm), 200G(0.8nm)
Channel Passband	Min	nm	±0.11 (100GHz), ±0.25 (200GHz),
Channel		-	8CH
Port Insertion Loss	Max	dB	2.8
Isolation	Adjacent	dB	≥30
Isolation	Non-adjacent	dB	≥40
1310 Port	Max	dB	1.0
Ripple	Max	dB	0.5
PDL	Max	dB	0.5
Return Loss	Min	dB	40
Directivity	Min	dB	50
Power Handing	Max	mW	300
Fiber Type		-	G67A1/ A2/ B3 or SMF-28
Fiber Coating		um	250 µm / 900 µm loose tube
Fiber Length		mm	1000
Connector		-	LC/UPC or Customized
Dimensions (HxWxD)		mm	80x58x8, 120x80x18, 155x129x29, 482x250x44
Operating Temperature		°C	-5~65
Storage Temperature		°C	-40~85

8-channel C-band operating wavelength (1525~1565nm)
Integrated 1310nm specific expansion/monitoring port
Supports 100GHz and 200GHz ITU mesh
Low port insertion loss (≤ 2.8 dB)
High isolation between adjacent and non-adjacent channels (≥ 30 dB / ≥ 40 dB)
High return loss (≥ 40 dB) and high directivity (≥ 50 dB)
Maximum 300mW optical power carrying capacity
Multiple high-reliability box/rack-mount packaging options

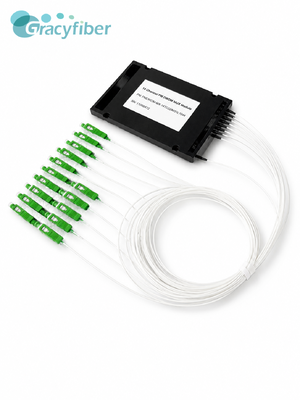

8CH DWDM Mux Demux Module | 1310nm Express & Monitor Port | 100GHz C-Band ITU Grid | Low IL 2.8dB | High Isolation DWDM 0

3. Applications

Dense wavelength division multiplexing (DWDM) system expansion
Long-haul trunk and metropolitan area network (MAN) transmission
Optical add-drop multiplexer (OADM) nodes
Data center interconnect (DCI) and enterprise leased lines
Multi-service transmission platform (MSTP) integration
