| 모델 번호: | 952005154 |

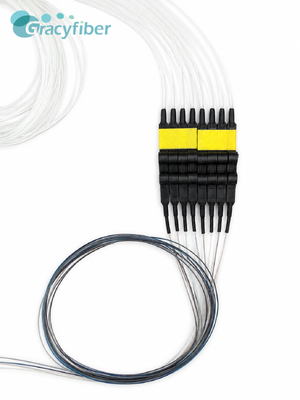

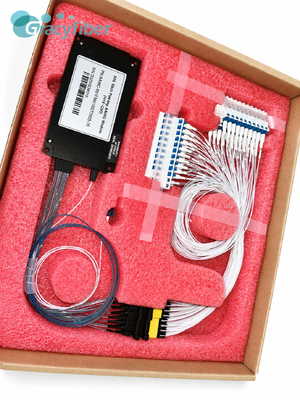

100GHz 40CH DWDM AAWG Module Gaussian C21 C60 Low Loss FC APC Fiber Mux Demux for Optical Communication Network
1. Product Overview
This product is a 100G 40CH Gaussian AAWG wavelength division multiplexing (WDM) module, operating in the C21–C60 band, suitable for 100GHz DWDM systems.
2. Core Product Features
| Parameters | Unit | Specification |
|---|---|---|
| Operating Band | C21 ~ C60 | |
| Clear Passband | GHz | ±12.5 |
| Wavelength Accuracy | pm | ±60 |
| 1dB Bandwidth | nm | ≥0.2 |
| 3dB Bandwidth | nm | ≥0.4 |
| 20dB Bandwidth | nm | ≤1.25 |
| Optical Insertion Loss | dB | ≤3.8 |
| Insertion Loss Uniformity | dB | ≤1.2 |
| Ripple | dB | ≤1.5 |
| Polarization Dependent Loss | dB | ≤0.6 |
| Adjacent Channel Isolation | dB | ≥23 |
| Non-adjacent Channel Isolation | dB | ≥30 |
| Total Crosstalk | dB | ≥21 |
| Polarization Mode Dispersion (PMD)* | ps | ≤0.5 |
| Chromatic Dispersion* | ps/nm | ±20 |
| Optical Return Loss* | dB | ≥40 |
| Package Dimension | mm | 60×80×12 |
3. Applications
