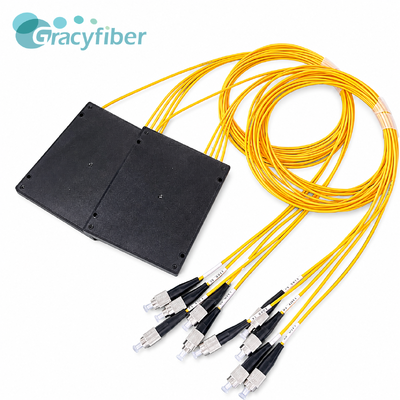

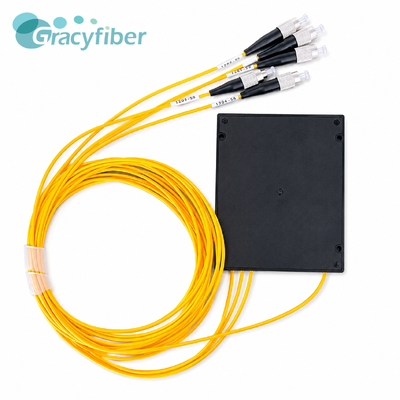

This product is the 4CH LWDM box-type 4×1 multiplexer, operating wavelengths covering 1295.56–1309.14 nm, including four O-band channels: 1295.56, 1300.05, 1304.58, and 1309.14 nm.
Supports four LWDM wavelengths: 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm, enabling four-channel optical signal multiplexing output.
Utilizes an O-band LWDM 800G channel design, suitable for high-speed short-distance optical transmission and multi-wavelength optical communication systems.
Module insertion loss IL ≤ 1.8 dB, helping to reduce link power loss and improve system transmission efficiency and stability.
Utilizes G657A1 fiber, 0.9 mm white loose tube, with a length of 50±5 cm including FC/APC connectors. The overall fiber length is ≥0.5 m, facilitating equipment connection and field installation.
Uses 100×80×10 mm ABS box encapsulation, offering a compact structure and excellent protection, suitable for optical communication equipment, wavelength division multiplexing (WDM) platforms, and modular system integration.
